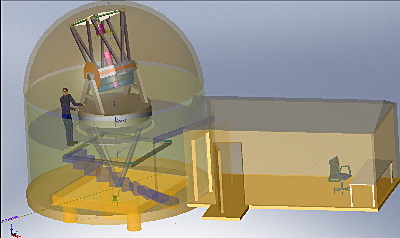

This is the preliminary design for our 1.1 meter F8 telescope. Total height will be just under twelve feet and its estimated to weigh almost two tons.

This is an alt/az style mount and the entire telescope rotates on the base. There are three moving axes, two for altitude and azimuth and a third to rotate the instrument package to maintain star alignment.
