Raemor Vista

Raemor Vista Observatory in south eastern Arizona
Alt. 4500'

Updated 7-2014

Dome is now fully automated with wide field camera.  3-2014

Temporary pier for ME II
 Wiring for full automation and fiber optic data line
 Hydraulic system for lower shutter

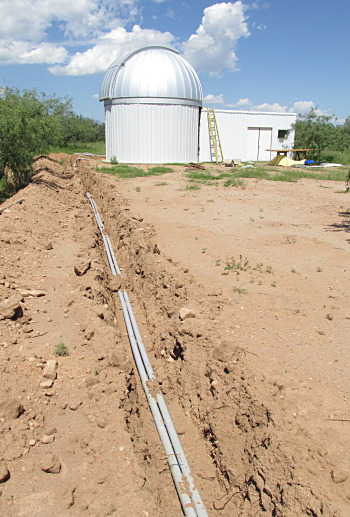

 Electrical conduits 2013
 Control room under construction
Dome structure enclosed.

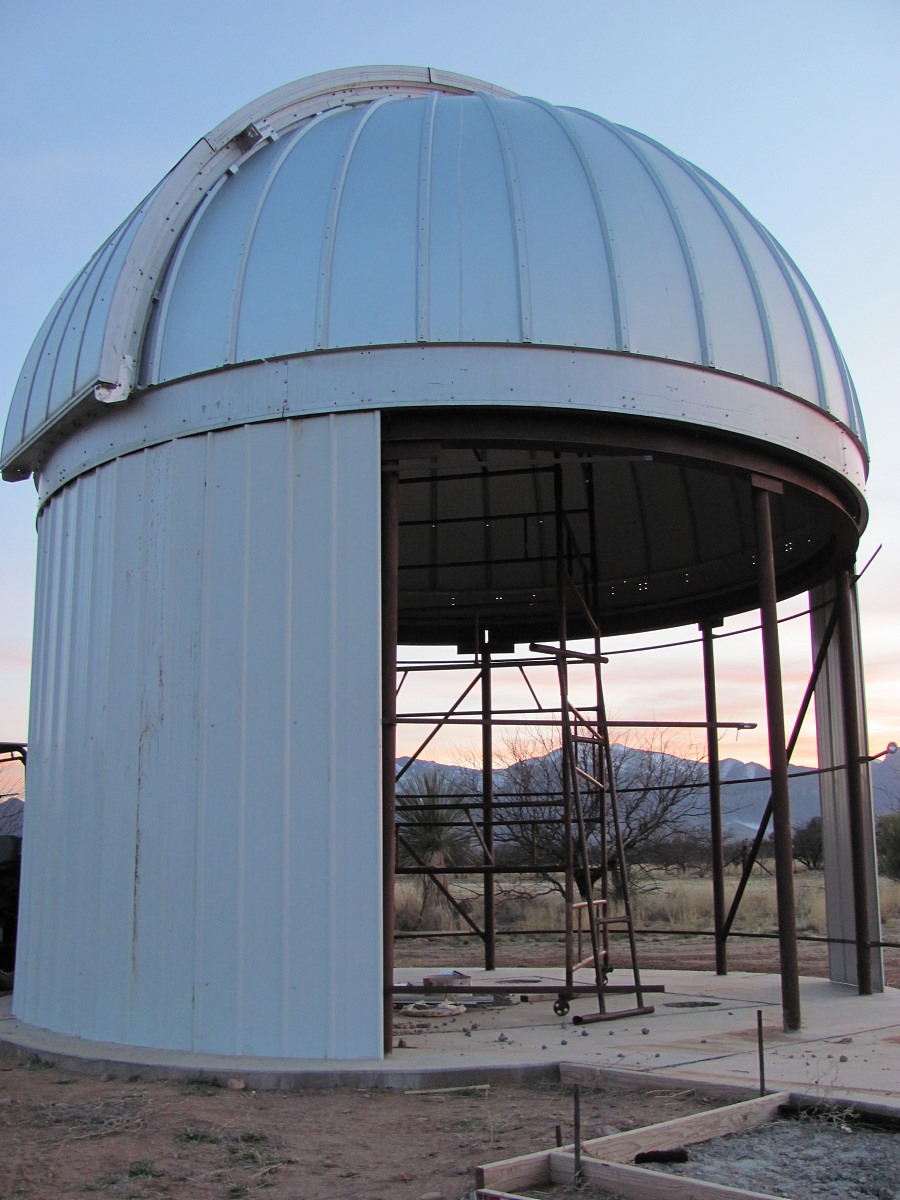

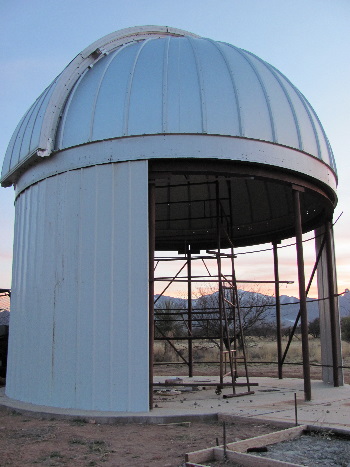

Side walls going up.

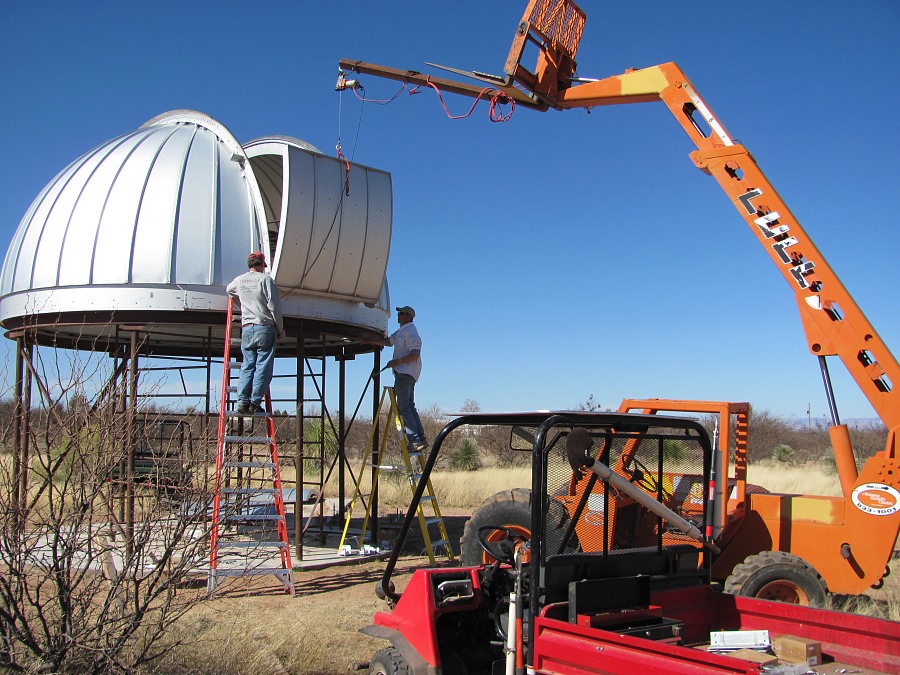

Lifting the 200lb lower shutter into place. 6-2010

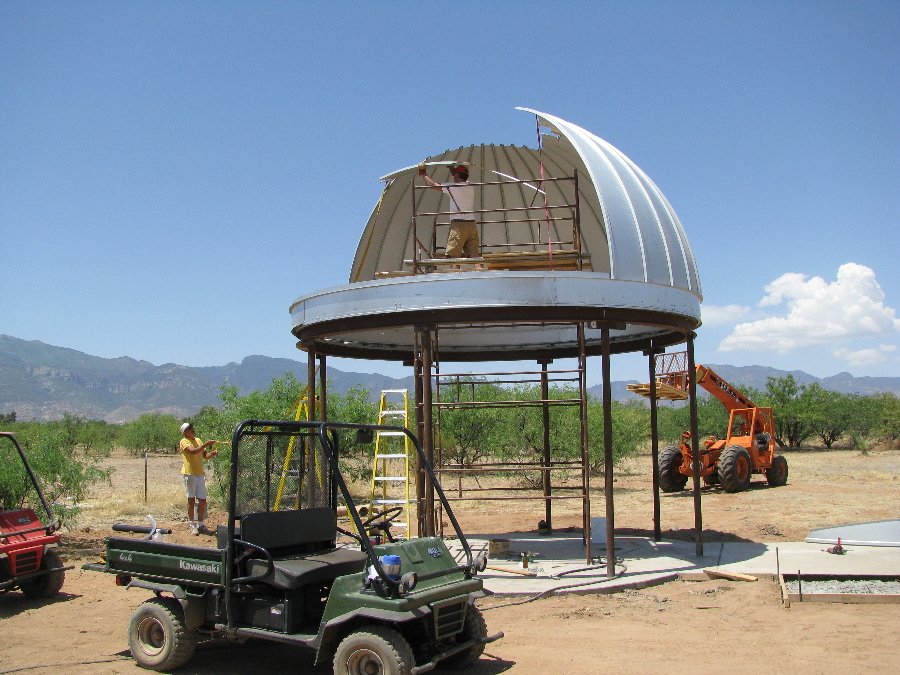

The dome becomes self supporting here.

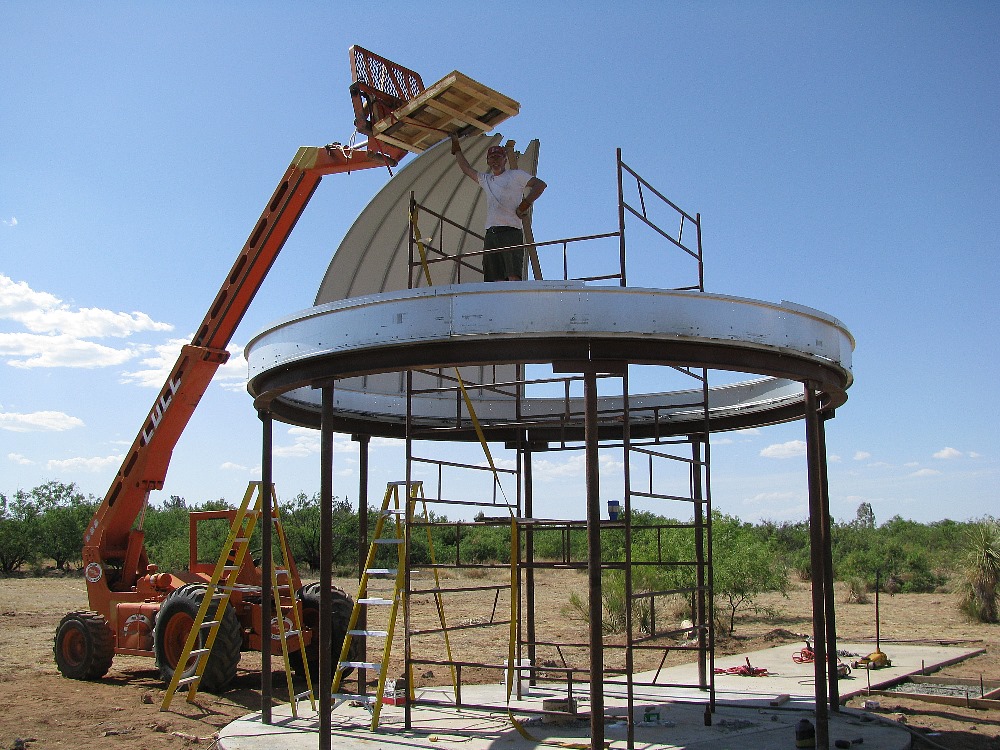

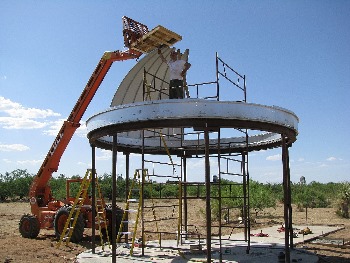

Individual panels being slid into position

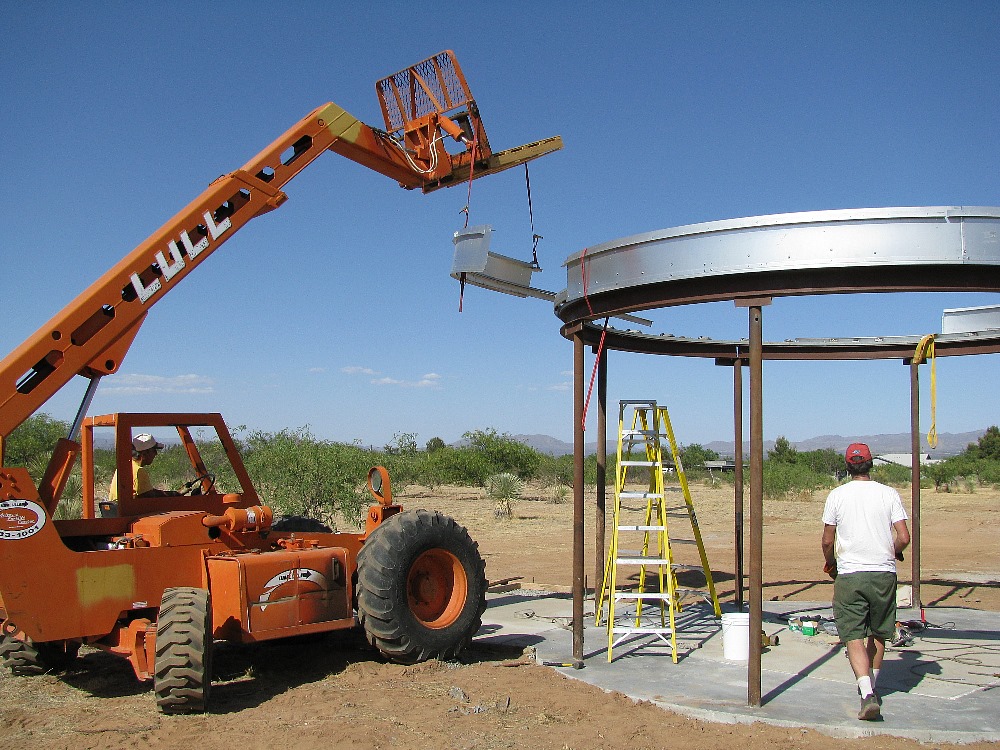

Skirt getting bolted into position

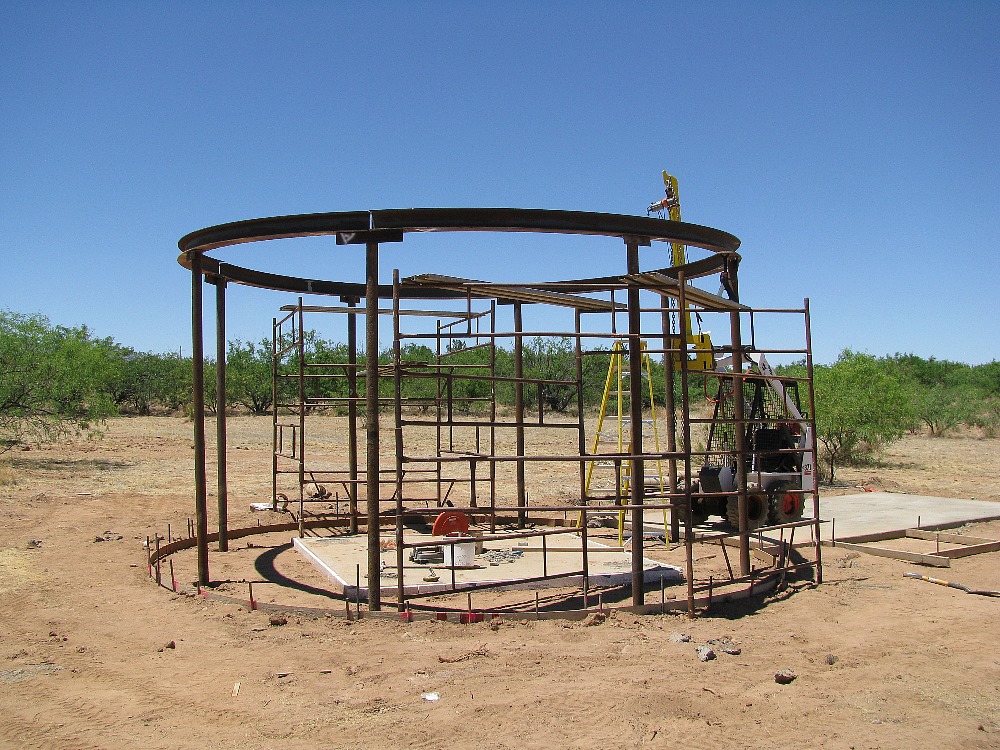

Support beams concreted into footings

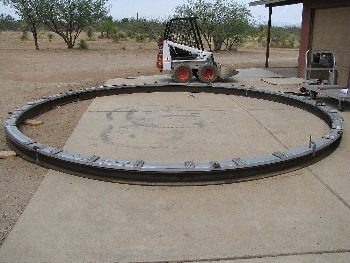

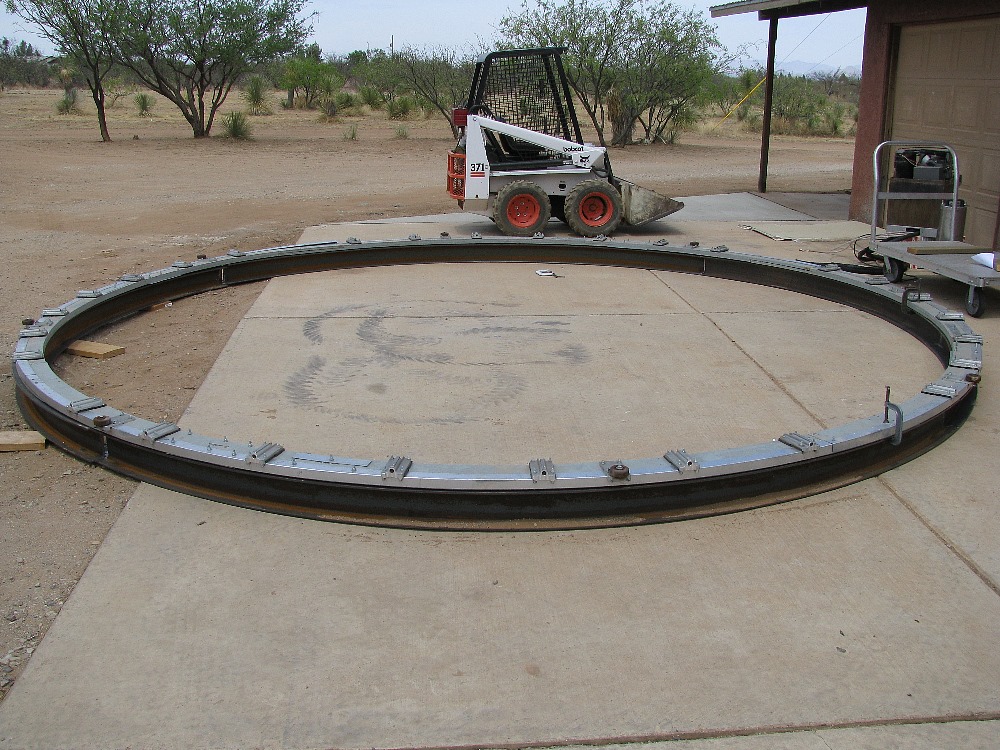

A 6x6 inch I-beam was custom bent into a circle to hold the roller ring

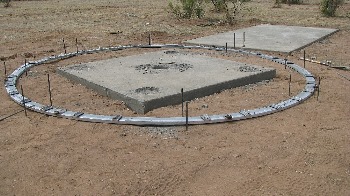

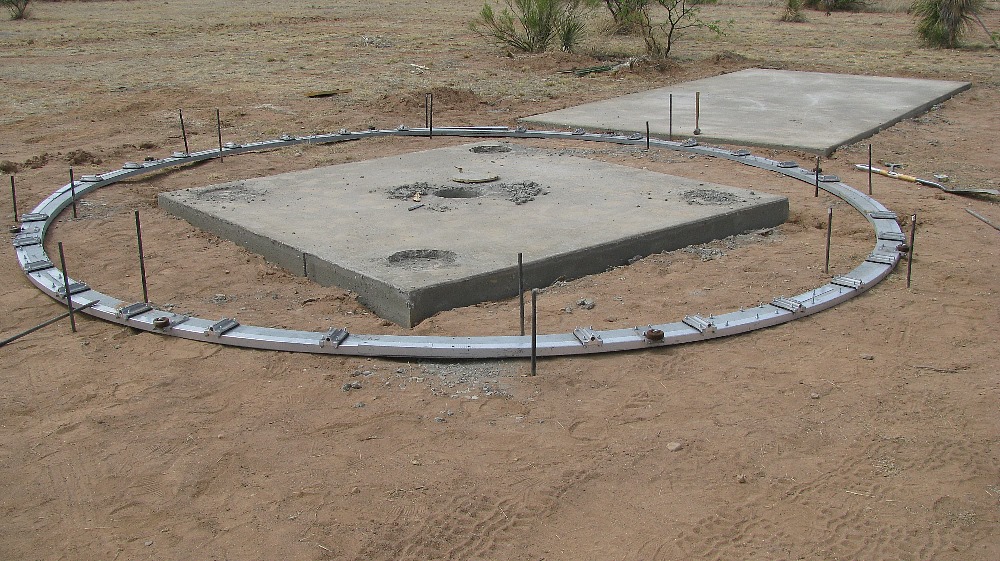

Layout of the roller ring for support spacing

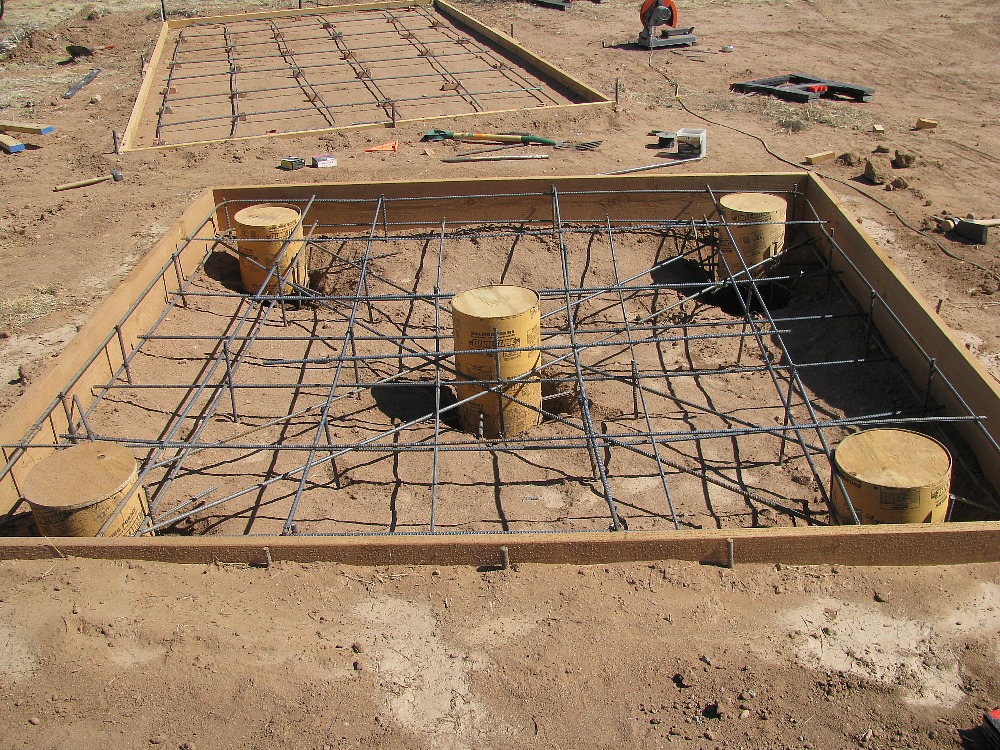

Telescope pier with footings for mounting points

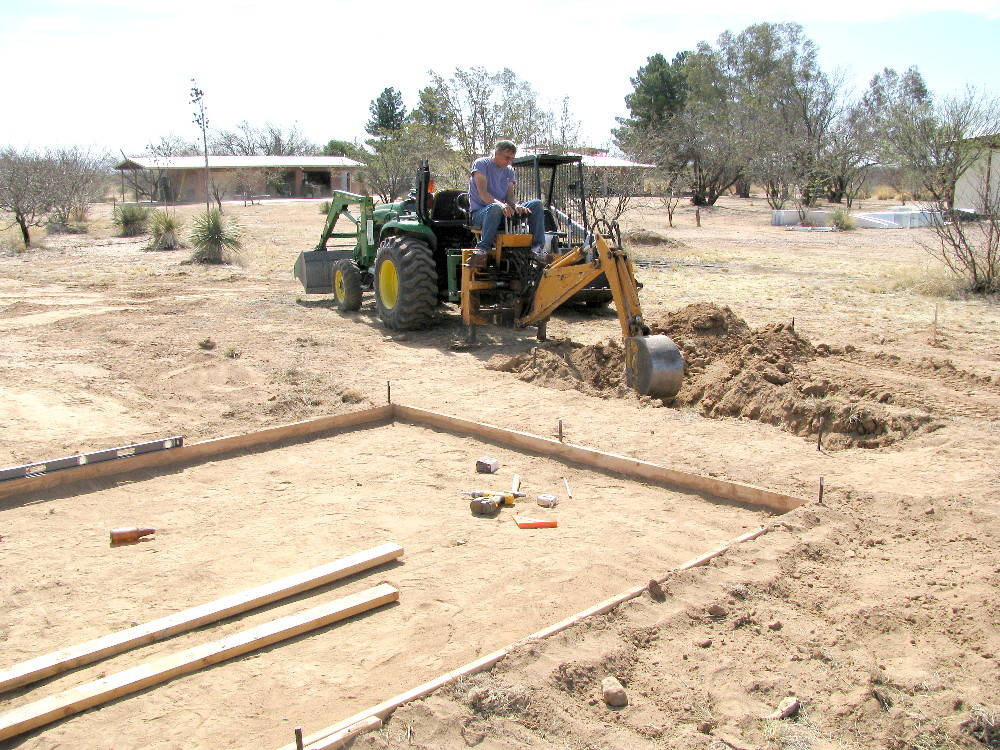

Digging the foundation for the telescope pier and control room

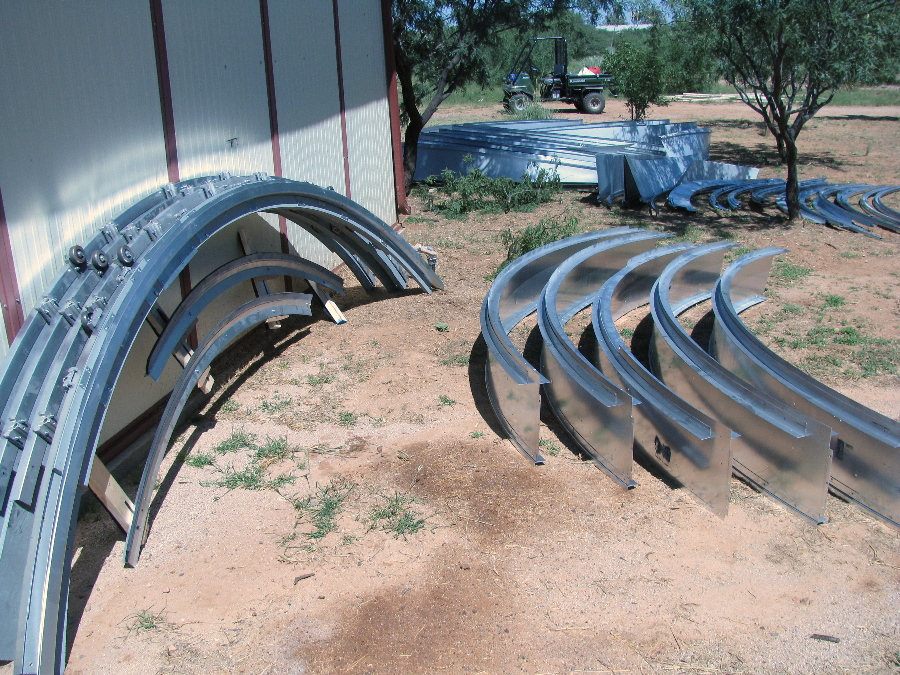

A semi truck worth of parts arrived in the fall of 08

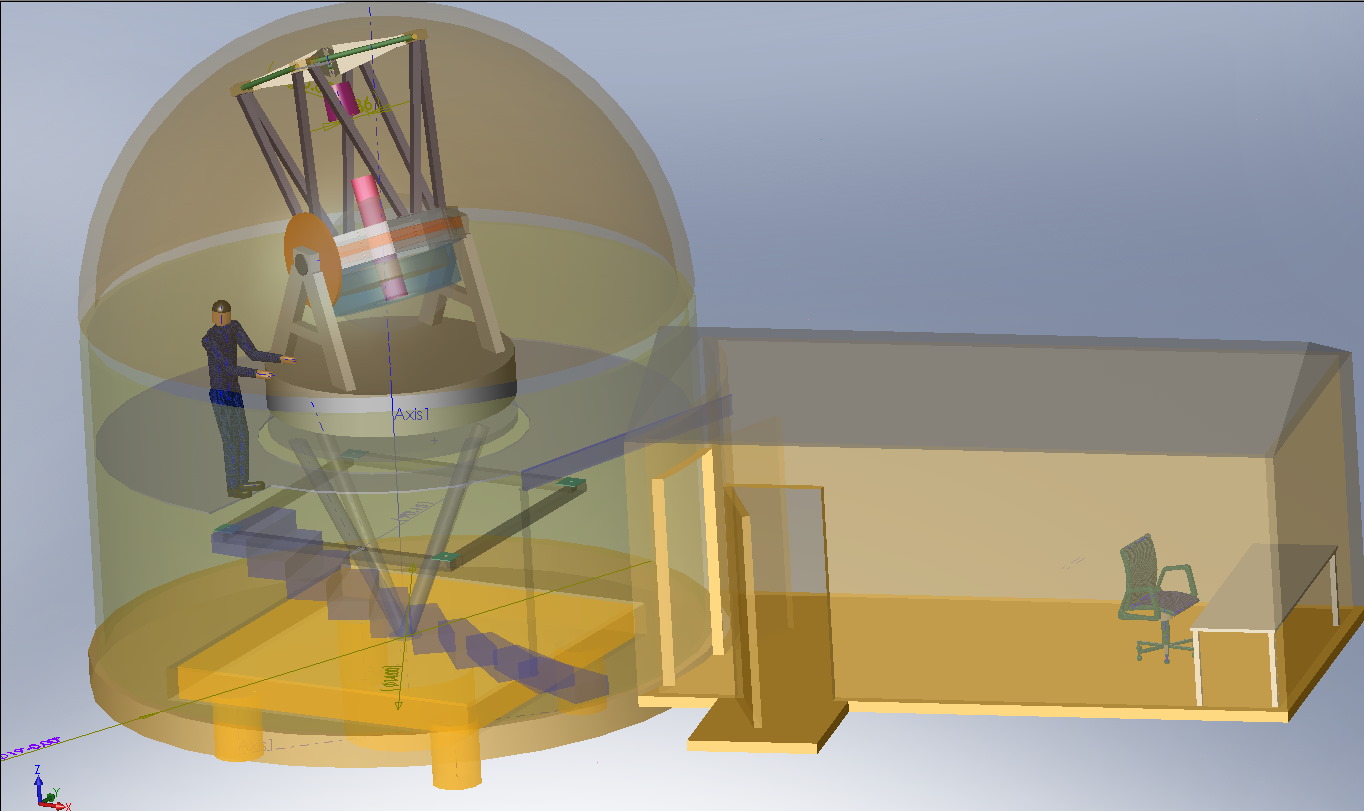

Original CAD design. 18' dome with 20x10 control room.
